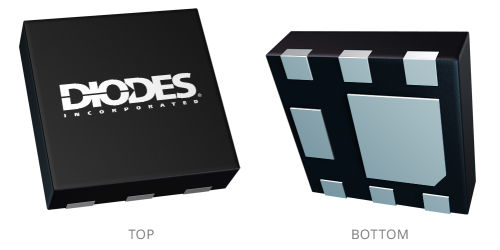

Image shown is for reference only. Actual package may vary. Refer to the product data sheet for package details. U-DFN2020-6 (Type B)
Image shown is for reference only. Actual package may vary. Refer to the product data sheet for package details. SO-8
NRND = Not Recommended for New Design
Dual P-CHANNEL ENHANCEMENT MODE MOSFET
Contact Sales
Log in or register to manage email notifications about changes to datasheets or PCNs for this part.
| CISS Condition @|VDS| (V) | -10 |
|---|---|
| CISS Typ (pF) | 642 |
| ESD Diodes (Y|N) | Yes |
| Polarity | P |
| QG Typ @ |VGS| = 10V (nC) | N/A |
| QG Typ @ |VGS| = 4.5V (nC) | 8.8 |
| AEC Qualified | No |
| RDS(ON)Max@ VGS(1.8V) (mΩ) | N/A |
| RDS(ON)Max@ VGS(10V) (mΩ) | N/A |
| RDS(ON)Max@ VGS(2.5V) (mΩ) | 137 |
| RDS(ON)Max@ VGS(4.5V) (mΩ) | 75 |
| |VDS| (V) | 20 |
| |VGS| (±V) | 8 |
| |VGS(TH)| Max (V) | -1.4 |
| |VGS(TH)| Min (V) | -0.35 |
